Modern Machine Company 1111 S. Water Street
Bay City, MI 48708
(989) 895-8563 |
| |
|

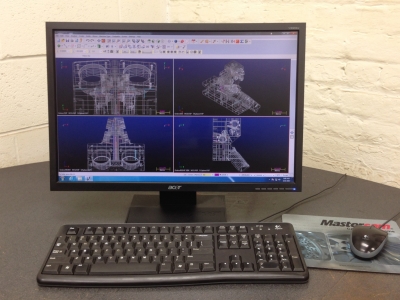

Modern is able to open and integrate many
different file types into Mastercam.
File formats included are:
IGES
DXF
DWG
Pro E
Parasolids
Solidworks |
 |

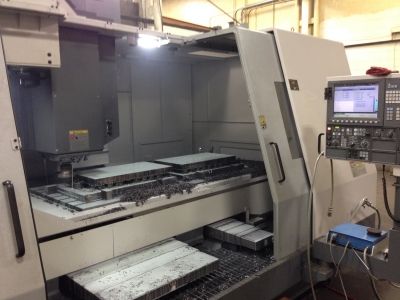

Continuously striving to compete with
the latest technology. These
newest additions were added in
2013/2014. Pictured is our largest
vertical machining center. 86"h x
41"v x 39"z
Please see
Equipment List |
 |

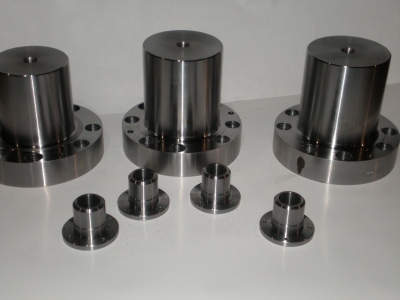

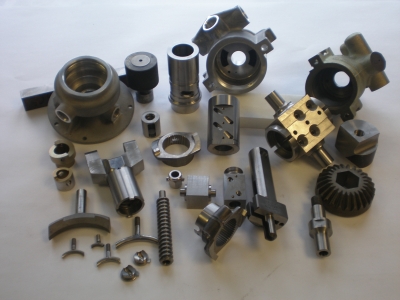

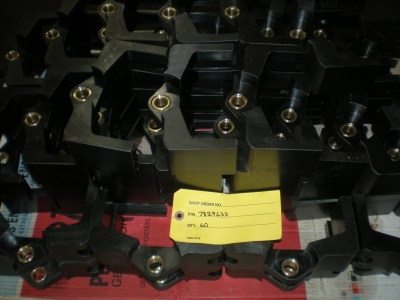

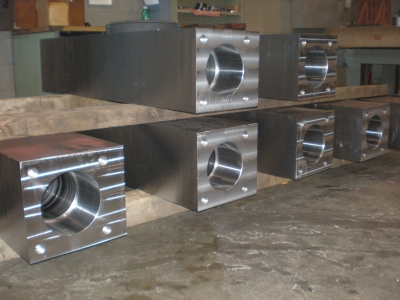

Examples
of parts machined.
Steering Pumps, Ball Stops, Gears, Ball
Nuts and Deflectors for Aircraft
Applications.
|
 |
|

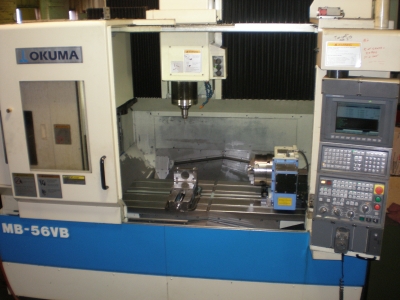

One of 9 vertical machining
centers integrated with 4th axis
units. |
 |
|
Example of utilizing work holding magnets
that allow machining of
I.D., O.D., face work and holes without
clamps. |
 |
|

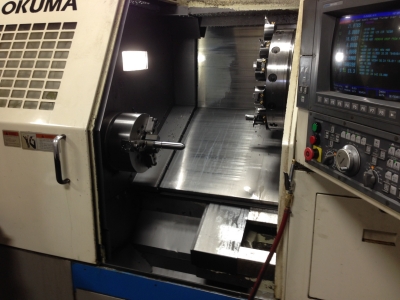

CNC live tool turning
capability. |
 |
|

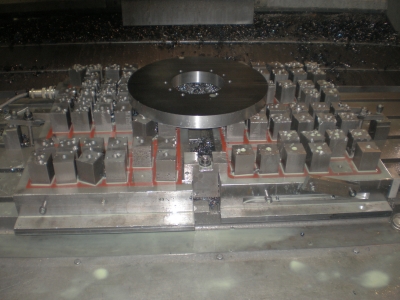

Short multiple piece run
capability on Vertical
CNC Machines. |
 |
|
Modern utilizes state of the art
tooling such as CBN and Diamond- This
eliminates grinding in
applications where finishes to 8 microns
are acceptable. |
 |
|
Example of 60" Long shaft supports with bearing
diameters in line within .0005. |
 |
|
Modern's 79" Square rotary tables allow 4 side
machining in 1 setup. |
 |
|
Modern has the capability to
produce seal grooves in different configurations
for pressure vessels, tank tops and
covers. Materials range from plastic
to the toughest stainless steels. |
 |
|

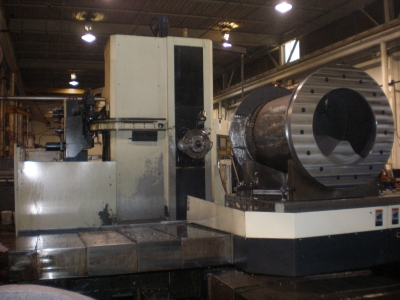

This horizontal has a 48" x 60" programmable rotary table
with
full CNC control. Machine I.D., O.D. and
face work at any angle in 1 setup. |
 |
|

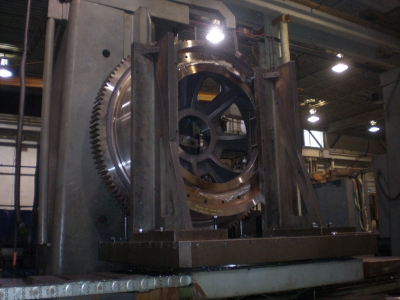

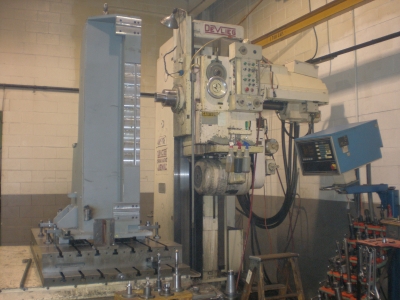

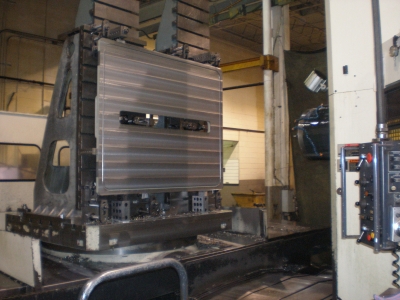

Modern houses multiple size angle plates to hold
various parts on larger boring mills. |
 |
|

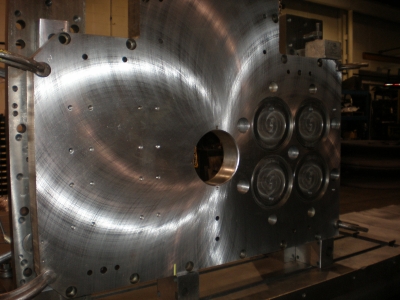

Example of a 52" base plate
previously blanchard ground. |
 |
|

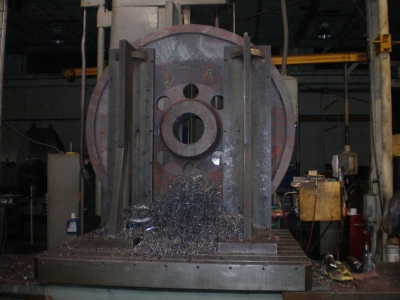

Large castings, face machined
and finished bored. |
 |
|

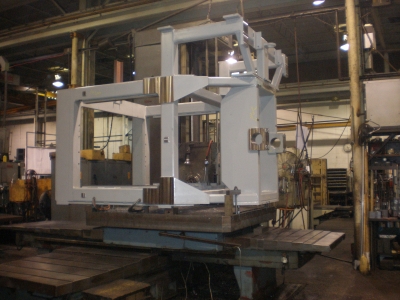

Modern manufactures complete, machine columns, bases, bushing blocks,
brackets, etc... Manual rotary
tables and point to point controls
assist ease of manufacture. |
 |

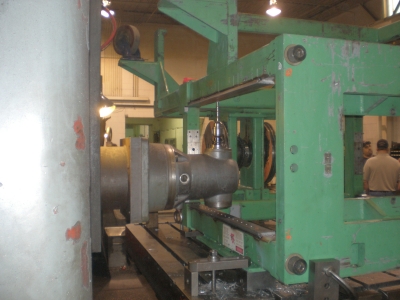

Example of our 90 degree Head attachment for
the Wotan boring mill.
Modern can remanufacture your worn parts
to exact specifications. |
 |

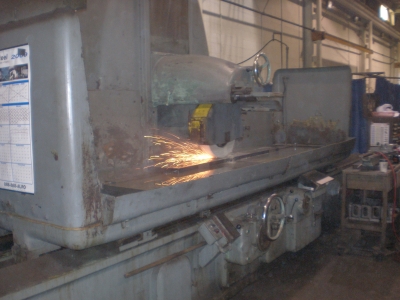

Modern can support 55" blanchard
capacity along with surface grinding of large parts
(36" x 120"). .0002 to .0005 flat and
parallel. See our equipment list for all
of your machining specifications.
Equipment List |
 |
|
|
